A lightweight framework on top of the Qt scene graph and only few classes from Qt/Quick. It is usable from C++ and/or QML.
Go to file
Uwe Rathmann 168b8be9d0 flipping QskStackBoxAnimator added 2022-07-19 16:50:40 +02:00
.github/workflows CI: Use the native backends on Windows also for Qt 6 (#194) 2022-06-06 07:06:07 +02:00
doc doxygen texts 2022-04-15 13:22:58 +02:00
examples flipping QskStackBoxAnimator added 2022-07-19 16:50:40 +02:00
features avoid qmake warning 2022-04-22 07:44:32 +02:00
inputcontext Hunspell: Move prediction to an own thread (#159) 2022-02-04 16:10:44 +01:00
playground dashboard exampe renamed to dials 2022-07-14 18:53:01 +02:00
qmlexport QskAspect added 2022-06-29 16:17:58 +02:00
skins clipping the ripple into the button panel 2022-07-18 09:11:45 +02:00
src flipping QskStackBoxAnimator added 2022-07-19 16:50:40 +02:00
support plugin initialization moved to SkinnyNamespace.cpp 2022-07-14 11:54:32 +02:00
tools making QskGraphic a Q_GADGET 2022-03-24 10:26:33 +01:00
.clang-format playing with clang-format 2018-08-03 08:15:28 +02:00
.gitignore tags added 2022-04-19 08:42:17 +02:00
.qmake.conf project file include mechanism based on QMAKEFEATURES 2019-03-31 13:05:25 +02:00
.uncrustify uncrustified 2022-03-23 11:54:34 +01:00
COPYING initial commit 2017-07-21 18:21:34 +02:00
README.md github build action for Linux and Windows (#175) 2022-04-13 07:23:36 +02:00
qskinny.pro Starting with a simpler version of QskCheckBox ( no tristate ), but with 2022-07-01 11:10:59 +02:00

README.md

QSkinny

The (Q)Skinny library is a framework built on top of the Qt scene graph and very few core classes from Qt/Quick. It offers a set of lightweight controls, that can be used from C++ and/or QML.

Doing the implementation in C++ allows to make use of the "scene graph" classes. Building controls from scene graph nodes allows for a lighter implementation than found with stacking "heavier" objects like QObject or QQuickItem. Offering a full featured C++ API allows the application code to benefit from following the same strategies.

Being "skinny" also means a design that separates concerns between the API and logic of the controls themselves, the styling of these controls, and the delegated rendering of the controls to the screen.

The code already provides a solid fundament for an automotive GUI with currently ~300K lines of pure C++ code. As expected it results in a good startup performance and a low memory footprint.

Nontheless QSkinny is lacking in areas like documentation or appealing default skins. The QML API has not been completed after reaching a proof of concept state. Furthermore the current selection of the implemented controls is limited to the needs of the driving projects.

QSkinny is supposed to run on all platforms being supported by Qt/Quick. But so far only Linux is actively tested. It might support all versions Qt >= 5.12, but you can rely on:

  • Qt 5.15
  • current long term supported ( LTS ) version of Qt
  • current version of Qt

On debian bullseye these packages need to be installed: build-essential qt-qmake qtbase5-dev qtbase5-private-dev qtdeclarative5-dev qtdeclarative5-private-dev libqt5svg5-dev.

If you want to know more about QSkinny - or even like to give it a specific direction - please contact support@qskinny.org.

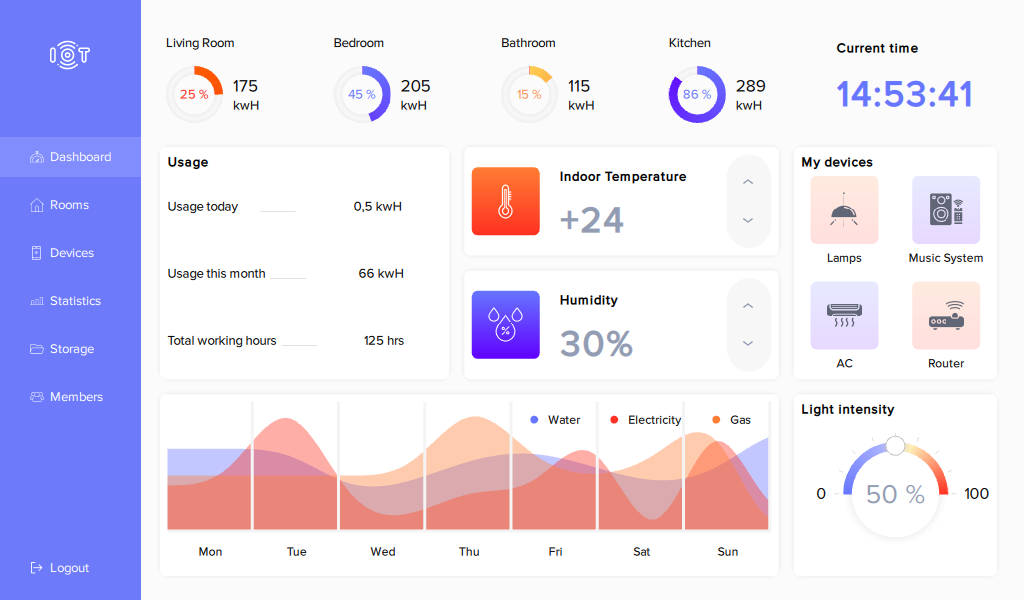

IOT dashboard

Contributing to QSkinny

For now QSkinny is licensed under LGPL v2.1. In the future, We want to have the possibility to transfer the QSkinny code to a more permissive license, i.e. any of the following or similar licenses: BSD "Simplified" License, BSD "Revised" License or MIT license.

If you are fine with these terms, you are welcome to contribute to QSkinny by completing the following steps:

  1. Agree to the terms of the Contributor Agreement. You can create a pull request first, then the licensing bot will check automatically whether you already signed the Agreement or not. If you have not signed it yet, it will take you to the Agreement to agree.
  2. Submit your pull request for review.
