A lightweight framework on top of the Qt scene graph and only few classes from Qt/Quick. It is usable from C++ and/or QML.
Go to file
Uwe Rathmann 7acd0f9c63 more operations for QskGradientStops 2025-05-15 11:25:49 +02:00
.github CI: Let install-qt choose the python version (#514) 2025-05-04 10:14:17 +02:00
cmake shaders: Use different names for qt6_add_shaders calls (#517) 2025-05-07 16:48:41 +02:00
designsystems using QskBoxHints 2025-03-11 09:56:51 +01:00
doc Update instructions on how to build the website (#470) 2024-11-13 10:00:38 +01:00
examples code simplified 2025-03-11 09:53:46 +01:00
inputcontext copyright notice generalised 2024-01-17 14:31:45 +01:00
playground shaders: Use different names for qt6_add_shaders calls (#517) 2025-05-07 16:48:41 +02:00
qmlexport internal macros ( not intended for application code ) moved from 2025-01-03 12:52:29 +01:00
src more operations for QskGradientStops 2025-05-15 11:25:49 +02:00
support fonts.qrc split into several qrc files 2024-02-28 12:29:00 +01:00
tools using icon fonts for M3 and F2 2025-02-21 12:41:08 +01:00
.clang-format fix lower case 2023-08-09 08:30:56 +02:00
.gitignore renamed exported targets and files 2024-01-11 14:18:28 +01:00
.qmake.conf project file include mechanism based on QMAKEFEATURES 2019-03-31 13:05:25 +02:00
.uncrustify upgraded to uncrustify 0.76.0 - still not happy with the C++ beautifier 2023-02-28 15:49:42 +01:00
CMakeLists.txt glyph2qvg added 2025-02-03 11:50:40 +01:00
LICENSES using icon fonts for M3 and F2 2025-02-21 12:41:08 +01:00
README.md using cmake instead of make in the docs 2024-01-13 11:41:22 +01:00

README.md

QSkinny

CMake Build Matrix

The (Q)Skinny library is a framework built on top of the Qt scene graph and very few core classes from Qt/Quick. It offers a set of lightweight controls, that can be used from C++ and/or QML.

Doing the implementation in C++ allows to make use of the "scene graph" classes. Building controls from scene graph nodes allows for a lighter implementation than found with stacking "heavier" objects like QObject or QQuickItem. Offering a full featured C++ API allows the application code to benefit from following the same strategies.

Being "skinny" also means a design that separates concerns between the API and logic of the controls themselves, the styling of these controls, and the delegated rendering of the controls to the screen.

The code already provides a solid fundament for an automotive GUI with currently ~300K lines of pure C++ code. As expected it results in a good startup performance and a low memory footprint.

Nontheless QSkinny is lacking in areas like documentation. The QML API has not been completed after reaching a proof of concept state.

QSkinny is supposed to run on all platforms being supported by Qt/Quick. It might support other versions of Qt, but you can rely on:

  • Qt 5.15
  • current long term supported ( LTS ) version of Qt ( at the moment Qt 6.5.x )
  • current version of Qt

How to build, install and use QSkinny is described in this tutorial.

If you want to know more about QSkinny - or even like to give it a specific direction - please contact support@qskinny.org.

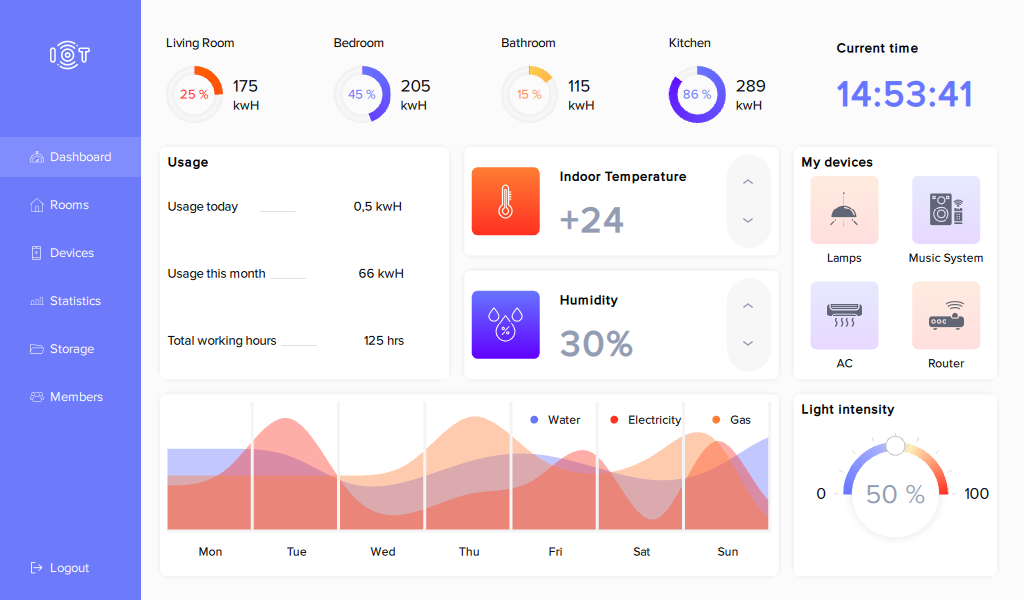

IOT dashboard

Contributing to QSkinny

QSkinny is licensed under the BSD 3 Clause License ( https://opensource.org/license/bsd-3-clause ). However we want to be able to offer more licenses on request.

If you are fine with these terms, you are welcome to contribute to QSkinny by completing the following steps:

  1. Agree to the terms of the Contributor Agreement. You can create a pull request first, then the licensing bot will check automatically whether you already signed the Agreement or not. If you have not signed it yet, it will take you to the Agreement to agree.
  2. Submit your pull request for review.
